Falcon Premium range

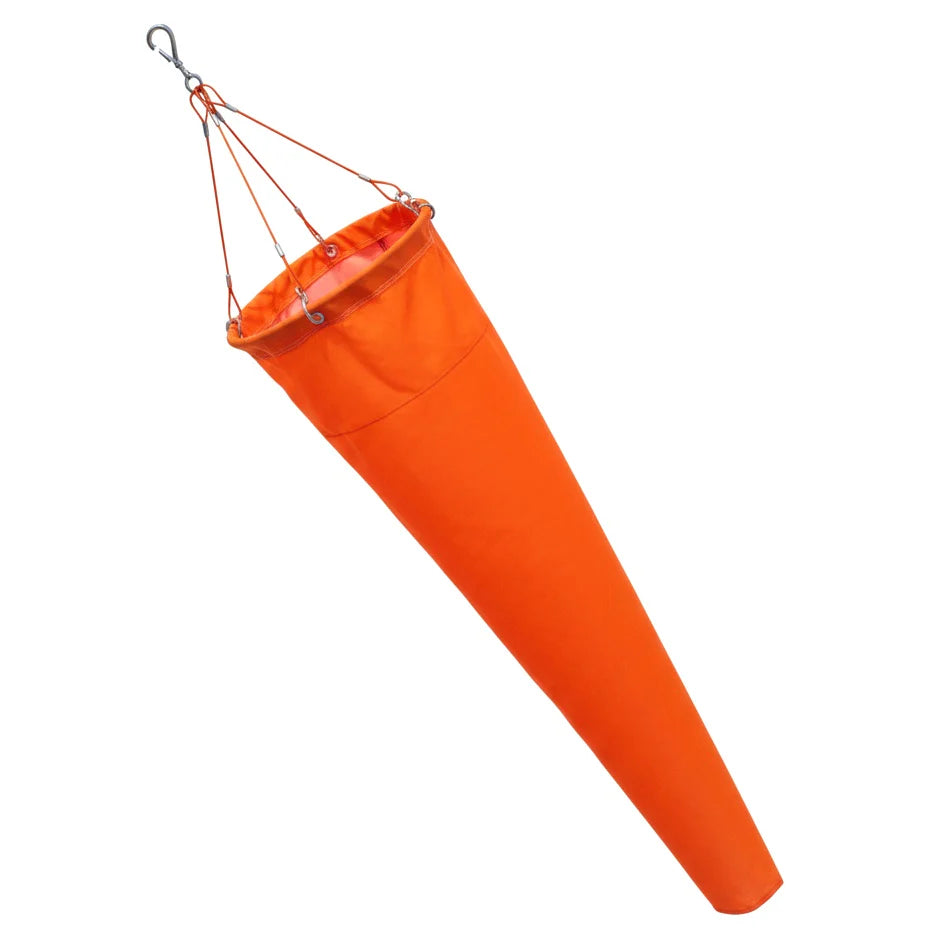

Falcon Premium Snap-On Windsock

200 gsm PU-coated polyester with galvanized snap harness. The compliance-led standard for FAA and ICAO aerodromes, and the OSHA-referenced choice for industrial sites.

FAA AC 150/5345-27FICAO Annex 14EN471:2003CAA CAP 168DSEAR 2002COMAH 2015
Choose size
$120 Free shipping
In stock, ships next business day

Every size ships fully documented, with a 12-month manufacturing warranty. Free US shipping, all duties paid.

Need 10+ units? Request a volume quote
Response within 1 working day. No obligation. (888) 559-2891
  • Full specification published Every dimension, material and standard on this page
  • 12-month warranty Backed against manufacturing defects on every windsock
  • Test report on request Intertek UKAS report for your safety file
  • Letter of conformity Produced on letterhead within 24 hours
Specified across

The same specification, deployed at licensed aerodromes and regulated industrial sites.

Cited by compliance code. Specified by procurement teams across aviation, energy, chemical and logistics sites.

Falcon windsock on an airfield apron at dusk with a commercial aircraft
Aviation Licensed aerodromesFAA AC 150/5345-27F / ICAO Annex 14
Falcon windsock at a fenced industrial process site
Chemical Tank farms & process sitesOSHA 29 CFR 1910.119 / NFPA 30
Falcon windsock at an oil and gas field with pump jack in the background
Energy Refineries & oilfieldsOSHA 29 CFR 1910.119 / NFPA 30
Falcon windsock at a distribution warehouse loading yard
Logistics Distribution & warehousingHSE guidance / Site assessment
Certified to

Specified for FAA-licensed airfields, NFPA-418 helipads, and OSHA PSM-covered industrial sites across the United States.

  • CAA CAP 168UK
  • ICAO Annex 14International
  • FAA AC 150/5345-27FUS
  • EN471:2003EU
  • DSEAR 2002UK
  • P200 OxfordMaterial
Full documentation
Specification

At-a-glance specification

Everything you need to paste into a requisition or verify against a tender.

Datasheet PDF

Dimensions

Size range
4 ft, 7 ft, 12 ft (1.2 m, 2.1 m, 3.6 m)
Throat diameter
450 mm (4 ft), 600 mm (7 ft), 900 mm (12 ft)
Tip diameter
150 mm (4 ft), 200 mm (7 ft), 300 mm (12 ft)
Taper angle
6 degrees Compliant with ICAO Annex 14 Appendix 6

Material

Fabric
300 denier Oxford weave polyester with polyurethane coating
Weight
200 gsm (P200)
Tensile strength
Warp 1,423 N, Weft 1,328 N Tested to ISO 13934-1
Color standard
Fluorescent orange to EN471:2003
Water resistance
Class 3 to EN343
UV protection
UV-stabilized coating, resistant to color degradation

Hardware

Attachment type
Snap-on to Falcon swivel arm (M10 bolt fixing)
Harness
Stainless steel wire throat hoop with galvanized steel fittings
Swivel compatibility
Falcon SA-1 standard and heavy-duty swivel arms
Mast requirement
Not supplied. Compatible with most standard windsock masts.

Compliance

Primary standards
FAA AC 150/5345-27F, ICAO Annex 14, CAA CAP 168
Secondary standards
EN471:2003 (color), DSEAR 2002 (industrial sites)
Test report reference
Intertek 104123-LOI-001 Available on request
Territories
United States, European Union, United Kingdom, Commonwealth

Provenance

Manufactured
United Kingdom. Cut, stitched and finished by hand in our workshop.
Service life
12 to 18 months under continuous use Depends on wind exposure and site conditions
Replacement cycle
Annual replacement recommended for licensed aerodromes
Warranty
12 months against manufacturing defects
Size options

Three sizes, one certified product

Choose the size that matches your mast diameter, site visibility requirement and regulatory specification.

Selected
7 ft windsock scale diagram

7 ft

2.1 m length, 600 mm throat

Regional airfields and mid-size industrial sites

  • Licensed aerodromes
  • General aviation airfields
  • Larger industrial and energy sites
  • Ports and refinery perimeters
Selected

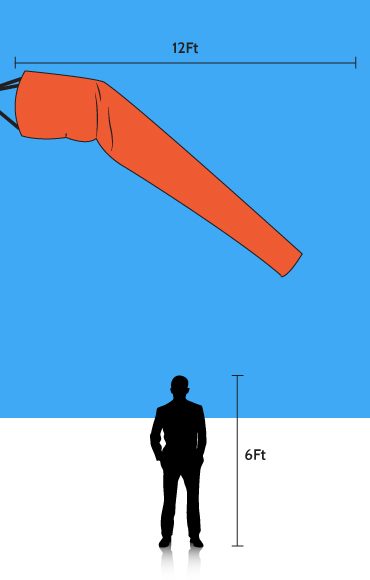

12 ft windsock scale diagram

12 ft

3.6 m length, 900 mm throat

Licensed aerodromes and high-visibility applications

  • Commercial airports
  • Military and defense aerodromes
  • Large industrial installations
  • High-visibility operational sites
Construction

Engineered for weather, visibility and service life

The Falcon Premium Snap-On is built from P200 polyurethane-coated polyester with stainless steel hardware, sewn and finished by hand in our workshop.

Every component is specified for continuous exposure: UV stable, water resistant to EN343 Class 3, and weighted for aerodynamic response even in light wind.

200 gsm
Fabric weight (P200)
1,423 N
Warp tensile strength
12-18 mo
Typical service life
Falcon windsock fabric being stitched by hand in the workshop
Every windsock is cut, stitched and finished by hand in our workshop.
04

P200 Oxford weave fabric

300 denier polyester with polyurethane coating. High tensile, UV stabilized and color fast.

Tested 1,423 N warp / 1,328 N weft, ISO 13934-1

05

Stainless steel hardware

Wire throat hoop and galvanized fittings selected for coastal, industrial and marine exposure.

Compatible Falcon SA-1 standard and heavy-duty swivel arms

06

Hand-finished in our workshop

Cut, stitched and finished in our workshop. Every windsock inspected before despatch.

Provenance ISO 9001 equivalent internal QA process

In the workshop

Cut, stitched and finished by hand in the workshop.

  1. Fabric being cut to panel size on the workshop bench
    01

    Cut

    P200 fabric cut to panel on the workshop bench. Every size dimensioned to FAA AC 150/5345-27F and ICAO Annex 14.

  2. Panels being stitched on an industrial sewing machine in the workshop
    02

    Stitch

    Reinforced panels stitched on industrial Durkopp Adler machines. Seam strength tested to BS EN ISO 1421.

  3. Close-up of industrial sewing machine finishing the windsock hem
    03

    Finish

    Hems rolled, harness fitted, karabinas mounted. Every sock finished by hand before inspection.

  4. Finished windsock being prepared for dispatch in the workshop
    04

    Inspect & ship

    Dimensional and visual inspection against specification. Packed and dispatched from the workshop.

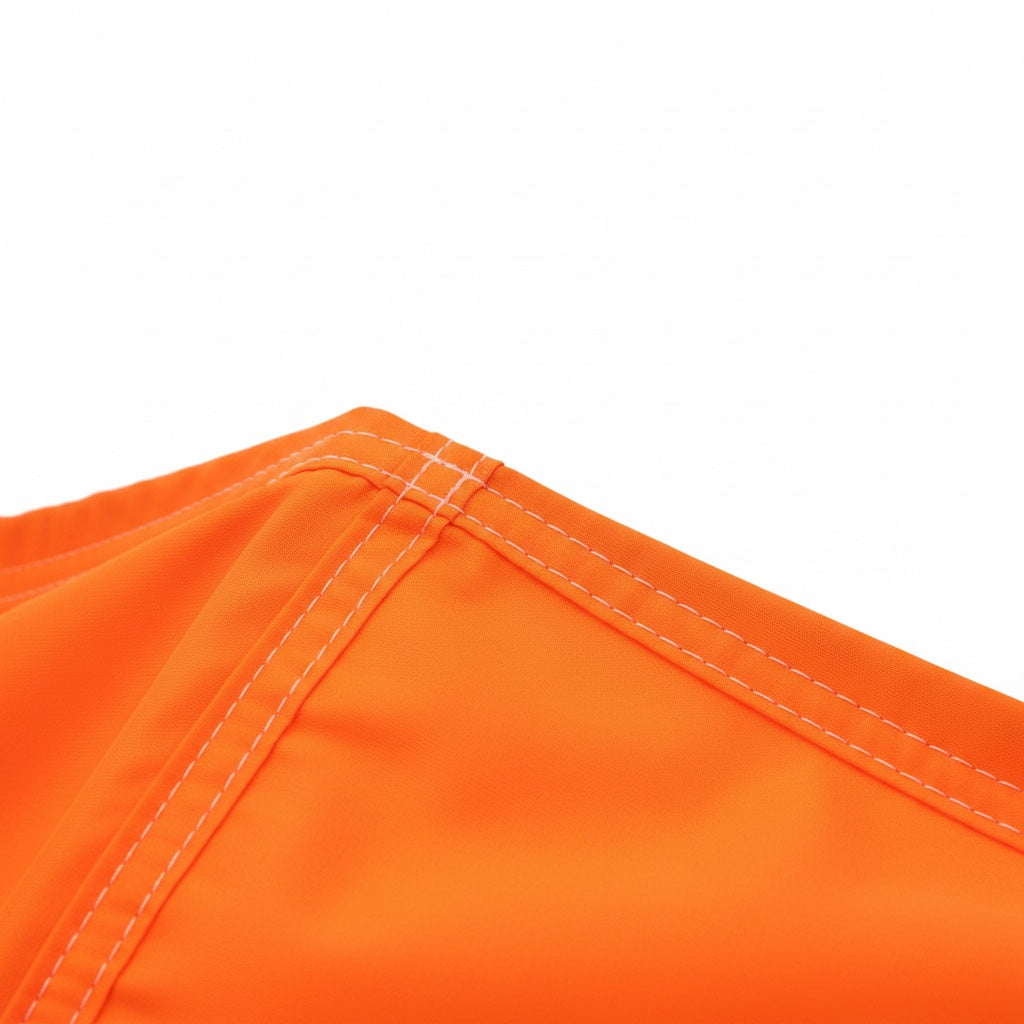

Macro close-up of P200 polyurethane-coated polyester weave
P200 polyurethane-coated polyester. 300 denier Oxford weave. Tested to ISO 13934-1.
Frequently asked

Answers for specifiers, procurement and operations teams

Everything we are asked on quote calls, in tenders and during site assessments. If your question is not here, ask us directly.

Can't find what you need? Our team responds to technical enquiries within 4 working hours.

Speak to a specialist
How long does a Falcon windsock last?

Under continuous exposure, the Falcon Premium Snap-On typically lasts 12 to 18 months. Service life depends on wind exposure, UV, and site conditions.

For CAA-licensed aerodromes, we recommend annual replacement regardless of visible condition. Our records show most industrial sites replace at 18 to 24 months.

Which size should I specify for a US airport or airfield?

The 7 ft Premium Snap-On is the size to specify for most US airports and airfields, and it is what we recommend unless your requisition calls for a larger indicator.

Specify the 12 ft Premium Snap-On where a large-format indicator is called for, and the 4 ft where a smaller indicator suits the position, such as helipads, industrial sites and OSHA-regulated installations.

If your requisition names a size or a specification, send it to us and we will confirm the match before you order. Non-standard sizes are built to order in the workshop.

Does the Snap-On fit swivel arms from other manufacturers?

The Snap-On attachment fits the Falcon SA-1 standard and heavy-duty swivel arms directly. It will also fit most UK and EU manufactured swivel arms with an M10 bolt-on fixing and a 25 mm pole diameter.

If you're replacing a non-Falcon windsock and want us to verify compatibility, send us a photograph of the mounting and we'll confirm before you order.

Are there any taxes or duties to pay?

No. The price shown is the final price. All US duties and import taxes are paid by Falcon before the shipment leaves, so nothing is collected on delivery. UK VAT does not apply to US orders.

What is your US delivery lead time?

Stock sizes (4 ft, 7 ft, 12 ft Premium Snap-On) leave the workshop the next business day on orders placed before 2pm UK time. US delivery is 4 to 7 business days, with all duties and import taxes paid.

Bespoke specifications and custom colors typically take 2 to 3 weeks in the workshop.

Do you provide letters of conformity for tender submissions?

Yes. We produce letters of conformity on Falcon letterhead against any referenced specification, including CAA CAP 168, ICAO Annex 14, FAA AC 150/5345-27F and site-specific DSEAR or COMAH requirements.

Tell us your tender reference and the standards cited, and we will produce the letter within 24 hours at no charge.

Can you supply a bespoke size, color or printed windsock?

Yes. Non-standard sizes, custom colors and printed logos or call signs are all produced in our workshop. Minimum order is one unit. Lead time is typically 2 to 3 weeks from artwork approval.

For tenders requiring specific dimensions or branding, contact our specification desk with the drawings and we will quote within one working day.

Do you supply the mast and swivel arm separately?

We stock the Falcon SA-1 swivel arm in standard and heavy-duty variants. Masts are not something we manufacture, but we recommend pairing the Falcon SA-1 with standard 25 mm or 50 mm galvanized steel poles available from any industrial fabricator.

If you need a complete installation, we can quote for the mast, swivel arm and windsock as a package.

What warranty applies?

Falcon Premium Snap-On windsocks carry a 12-month warranty against manufacturing defects. This covers stitching failure, hardware failure and material defect under normal use.

The warranty does not cover damage from extreme weather events, impact, or use outside the product's specified conditions.

Do you ship internationally?

Yes. We regularly ship to the European Union, Middle East, North America and Commonwealth countries. International freight is quoted at order by weight and destination.

Customs documentation including harmonized codes, certificates of origin, and letters of conformity is produced by our despatch team.

Where are Falcon windsocks manufactured?

All Falcon windsocks are cut, stitched and finished by hand in our workshop in the United Kingdom. Fabric is P200 polyurethane-coated polyester from UK and European mills. Hardware is UK and EU sourced.

We do not outsource finishing or assembly. Every windsock is inspected before despatch.

Order or request a quotation

The windsock your US safety file needs. FAA, OSHA and NFPA aligned.

Order standard sizes online for delivery in 4-7 working days. Request a USD quotation for volume, multi-site, or purchase order requirements. One business day response. Documentation on Falcon letterhead.
