Falcon Windsock Swivel ArmPairs with Snap-On
Falcon hardware

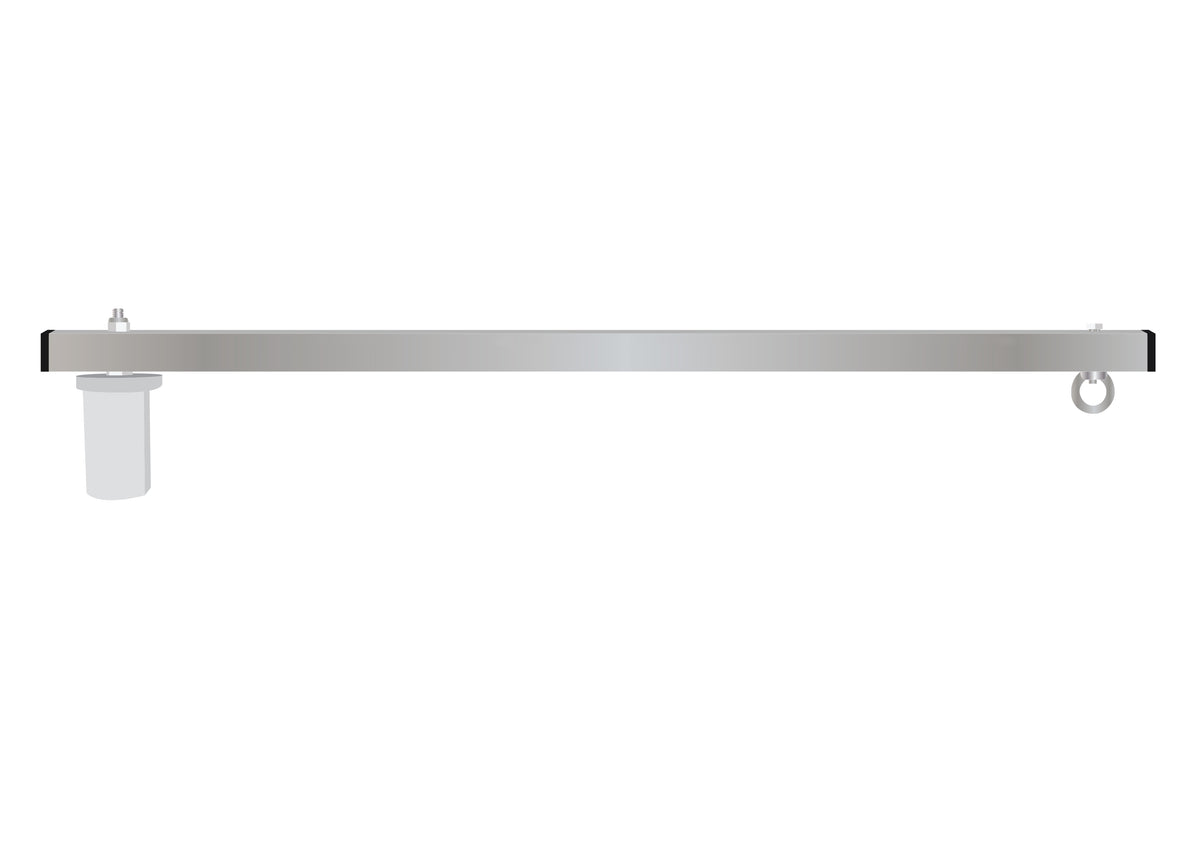

Falcon Windsock Swivel Arm

Galvanised swivel arm with karabina harness. Slot-in mount for standard 50 mm masts and poles. Pairs with every Falcon Snap-On windsock for tool-free replacement.

Galvanised steelMarine-grade harnessUK manufactured
Choose size
$149 ex VAT
Currently unavailable

Every size ships fully documented, with a 12-month manufacturing warranty. Free UK and international delivery.

Need 10+ units? Request a volume quote
Request formal quotation
Response within 1 working day. No obligation. +44 20 4634 1771
  • Full specification published Every dimension, material and standard on this page
  • 12-month warranty Backed against manufacturing defects on every windsock
  • Test report on request Intertek UKAS report for your safety file
  • Letter of conformity Produced on letterhead within 24 hours
Specified across

The standard mounting hardware for Falcon windsocks across regulated sites.

Galvanised for coastal, industrial and marine exposure. Slot-in design fits standard 50 mm poles and masts. Used with the Falcon Snap-On harness for tool-free windsock replacement.

Falcon swivel arm and windsock on an airfield apron
Aviation Licensed aerodromesCAA CAP 168 / ICAO Annex 14
Falcon swivel arm and windsock at an industrial process site
Chemical Tank farms & process sitesDSEAR 2002 / COMAH 2015
Falcon swivel arm and windsock at an oil and gas field
Energy Refineries & oilfieldsDSEAR 2002 / COMAH 2015

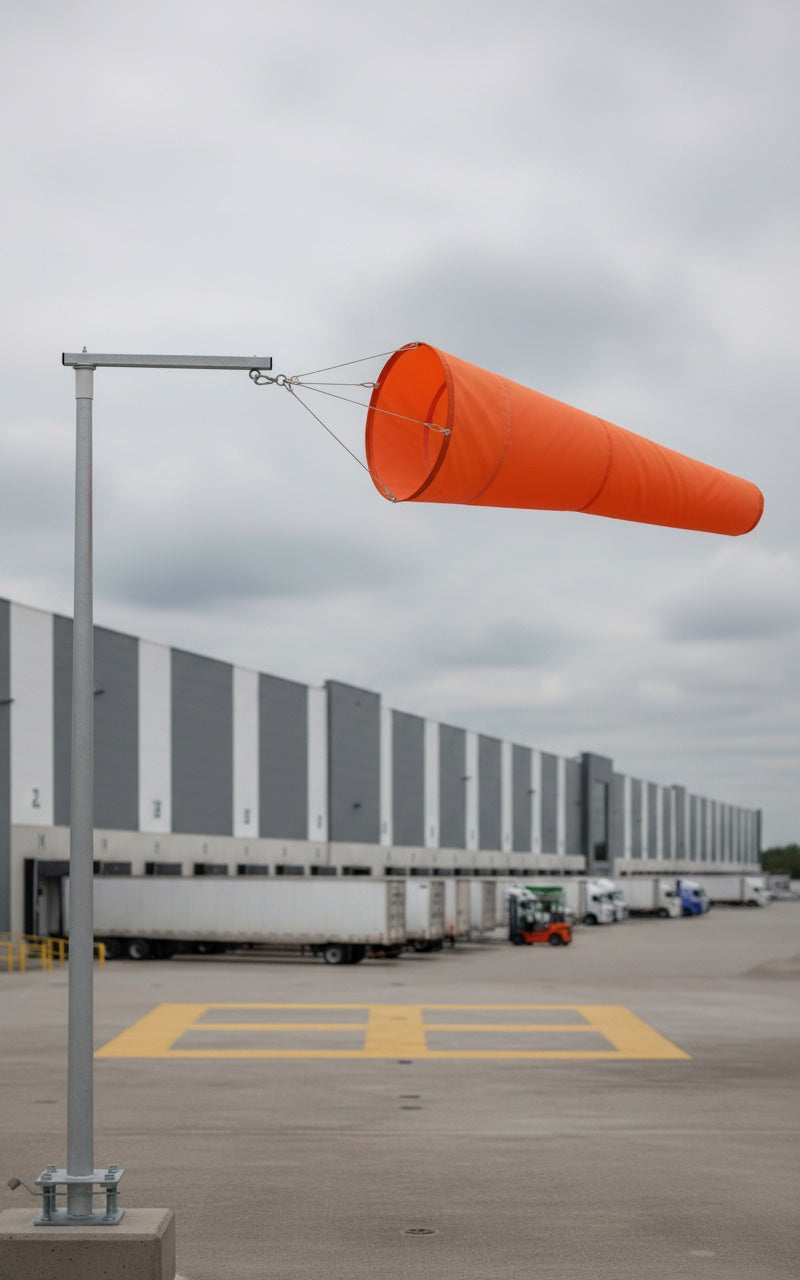

Falcon swivel arm and windsock at a distribution warehouse
Logistics Distribution & warehousingHSE guidance / Site assessment
Built to

Specified for FAA-licensed airfields, NFPA-418 helipads, and OSHA PSM-covered industrial sites across the United States.

  • Galvanised steelMaterial
  • BS EN ISO 1461Coating
  • Marine-grade harnessHardware
  • UK manufacturedProvenance
Full documentation
Specification

At-a-glance specification

Dimensions, materials and fixings for your requisition or tender.

Datasheet PDF

Dimensions

Arm length
600 mm
Arm diameter
32 mm
Slot-in diameter
50 mm Fits standard 50 mm poles and masts
Total weight
2.4 kg

Material

Arm and collar
Galvanised mild steel
Coating standard
Hot-dip galvanised to BS EN ISO 1461
Swivel bearing
Stainless steel, sealed
Corrosion resistance
Rated for coastal, industrial and marine exposure

Hardware

Mounting
Slot-in fixing. Inserts into standard 50 mm masts and poles.
Harness
Galvanised karabina harness. Compatible with every Falcon Snap-On windsock.
Rotation
360 degree free rotation on sealed stainless steel bearing
Pole compatibility
Standard 50 mm masts and poles. Not supplied with pole.

Provenance

Manufactured
United Kingdom
Service life
10+ years under continuous outdoor use Galvanised coating rated for long service
Warranty
12 months against manufacturing defects

Galvanised to BS EN ISO 1461. Sealed stainless steel swivel bearing. Compatible with every Falcon Snap-On windsock.

Documentation

Full technical documentation, openly published

Datasheets, installation guides and conformity statements for specification files and tender submissions.

Annotated diagram of the Falcon swivel arm
Full technical drawing with measurement references

Need a bespoke arm length, a custom mounting or a letter of conformity on your letterhead? Our team produces specification documents against tender references.

Contact our specification desk
Frequently asked

Answers for specifiers, procurement and operations teams

Everything we are asked on quote calls and during site assessments. If your question is not here, ask us directly.

Can't find what you need? Our team responds to technical enquiries within 4 working hours.

Speak to a specialist
Which windsocks does the swivel arm fit?

Every Falcon Snap-On windsock pairs with the swivel arm via the galvanised karabina harness. That includes the 4 ft, 7 ft and 12 ft Snap-On sizes.

The swivel arm is not designed for Lace-On windsocks, which are secured directly to fixed hoops or cages.

What pole size does the swivel arm fit?

The swivel arm has a 50 mm slot-in fixing and fits standard 50 mm masts and poles. Poles are not supplied with the arm.

If you are specifying a new installation and need pole and arm together, contact us and we will quote the complete assembly.

Is the swivel arm suitable for coastal or marine sites?

Yes. The arm is hot-dip galvanised to BS EN ISO 1461 and rated for continuous exposure in coastal, industrial and marine environments. The swivel bearing is sealed stainless steel for corrosion resistance.

Can I replace the windsock without removing the arm?

Yes. The galvanised karabina harness allows the windsock to be removed and replaced in under a minute without tools or lowering the pole.

What is your UK delivery lead time?

Swivel arms despatch next working day from order before 2pm. Standard UK delivery is 1 to 2 working days. Free UK and international delivery.

What warranty applies?

Falcon swivel arms carry a 12-month warranty against manufacturing defects. This covers galvanising failure, bearing failure and material defect under normal use. The warranty does not cover impact damage or use outside the product's specified conditions.

Do you ship internationally?

Yes. We regularly ship swivel arms to the European Union, Middle East, North America and Commonwealth countries. Delivery is free worldwide.

Where is the swivel arm manufactured?

Falcon swivel arms are manufactured in the United Kingdom. Galvanising is carried out by a UK-based ISO 1461 certified coater. Every arm is inspected before despatch.

Order or enquire — US

The windsock your US safety file needs. FAA AC 150/5345-27F. OSHA 29 CFR 1910.119. NFPA 418. Free US shipping in 4-7 working days, all duties paid.

Order standard sizes online for delivery in 4-7 working days. Request a USD quotation for volume, multi-site, or purchase order requirements. One business day response. Documentation on Falcon letterhead.

Add to cart Request Quotation
